SPIRAX PRESSURE REDUCING VALVE

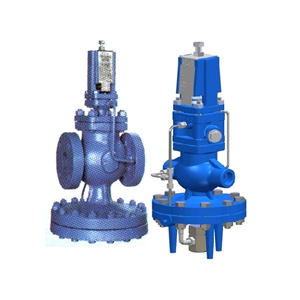

Pressure Reducing Valve DP 143


Limiting Conditions Maximum Working Condition 26 kg / cm2 at 300° C. Body design Conditions 42 kg / cm2 at 427° C. Cold Hydraulic test pressure without internals 52 kg/cm2


Sizes: NB 15,20, 25,40, 50 and 80. Std. Accessories: Pr. Gauge, syphon & Gauge cock Pipe Connections: Flanged to - BS10 table - 'J' * & 'K' ANSI - 300' * & '600' DIN - ND - '25' & * '40' *Note - 80 NB has these flanges only. Available with IBR certificate Also available for air applications. Pressure Sensing Pipe: The DP 143 valve controls the downstream pressure by sensing the down stream pressure through an external sensing pipe taken from down stream to the pilot valve chamber (10) Fitting of this external pressure sensing pipe is described in the User manual If the external sensing pipe is not provided then the valve controls by internal pressure sensing pipe (19). However the capacity in this case will be reduced. Installation: See User manual supplied with the valve. How to specify: Example 1) 20 NB SPIRAX MARSHALL DP -143 FOR STEAM FLANGED TO BS 10 TABLE 'K' IBR (OR NIBR). 2) 40 NB SPIRAX MARSHALL DP 143 FOR AIR FLANGEDTO ANSI 300 NIBR.
